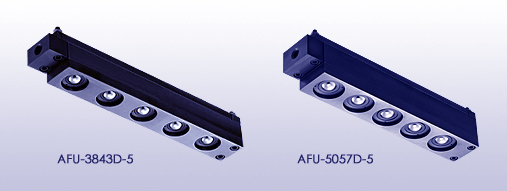

 ▶ Ball Transfer Unit (하향용) : AFU-3843D-5 , AFU-5057D-5 Series

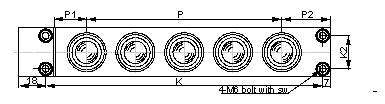

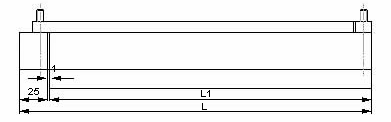

  Connection diagram


      Connection examples

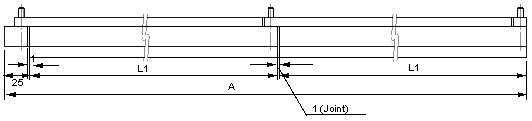

        Example1: (connection of 2 FREEBEAR Units)
        A(dimension) = 25 + 1 + L1 + 1 + L1
        Example2:(connection of 3 FREEBEAR Units)
        A(dimension) = 25 + 1 + L1 +1 + L1 + 1 + L1
        Example3:(connection of 4 FREEBEAR Units)
        A(dimension) = 25 + 1 + L1 +1 + L1 + 1 + L1 + 1 + L1



Model

Dimensions (mm)

Weight
(kg)

공기압과 부하능력과의 관계 (kgf)
D H H1 H2 L L1 P P1 P2 K K2 B

프리 베이스 업 1개

AFU 1개

사용공기압
MPa(kgf/cm²)

사용공기압
MPa(kgf/cm²)
0.40
(4.1)		 0.50
(5.1)		 0.60
(6.1)		 0.40
(4.1)		 0.50
(5.1)		 0.60
(6.1)

AFU-3843D-5

38 43 46 20 290 264 4xP50=200 24 40 265 24 3/4"
(19.05)		 3.2 0.23
(23.5)		 0.31
(31.6)		 0.39
(39.8)		 1.15
(117.3)		 1.55
(158.1)		 1.95
(198.8)

AFU-3843D-10

540 514 9xP50=450 515 6.0 2.30
(234.5)		 3.10
(316.1)		 3.90
(397.7)

AFU-5057D-5

50 57 60 25 300 274 4xP50=200 28 46 275 34 1"
(25.40)		 5.8 0.47
(47.9)		 0.58
(59.1)		 0.70
(71.4)		 2.35
(239.6)		 2.90
(295.7)		 3.50
(397.7)

AFU-5057D-10

550 524 9xP50=450 525 10.0 4.70
(479.3)		 5.80
(591.4)		 7.00
(713.8)
