▶ SBS LM GUIDE (SBS-SV Super compact type)

unit :mm

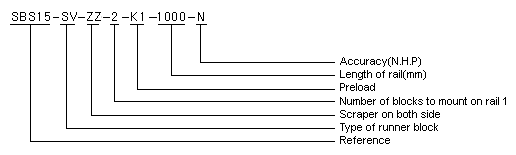

Model No.	External dimensions				LM-block dimensions
	Height H	E	W₂	Width W	Length L	Mounting tab hole		L₁	J₁	K	T	Grease nipple
	Height H	E	W₂	Width W	Length L	B	M X ℓ	L₁	J₁	K	T	Mouniing hole	T₁	N
SBS 15 SV	24	2.65	9.5	34	42.9	26	M4x5	22.9	21.35	6	Ø3 .5	4	5
SBS 20 SV	28	3.5	12	44	54.2	32	M5x7	27.8	24.5	7.5	M6x0.75	5	9.8
SBS 25 SV	33	5	12.5	48	62.6	35	M6x8	35.2	28	8	M6x0.75	5.2	9.8

※ Download CAD Files

Model No.	LM-rail dimensions						Load capacity					Weight
	Width W1	Height H1	Pitch F	Bolt hole dxDxh	G	Max Lengths Lomax	Dynamic C(kgf)	Stationary Co	Stationary(kgfㆍm)			Bearing (kgf)	Rail (kgf/m)
	Width W1	Height H1	Pitch F	Bolt hole dxDxh	G	Max Lengths Lomax	Dynamic C(kgf)	Stationary Co	MRo	MPo	Mro	Bearing (kgf)	Rail (kgf/m)
SBS 15 SV	15	15	60	4.5x7.5x5.3	20	3,000	458	738	4	3	3	0.11	1.45
SBS 20 SV	20	17.5	60	6x9.5x8.5	20	4,000	781	1378	12	10	10	0.19	2.20
SBS 25 SV	23	21.8	60	7x11x9	20	4,000	1152	2154	19	17	17	0.32	3.10
