▶ SBS LM GUIDE SLL (Ultra-heavy-load compact type)

unit :mm

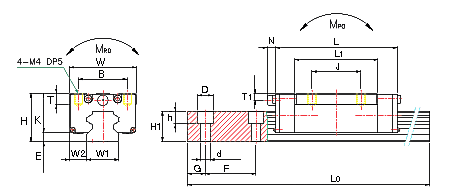

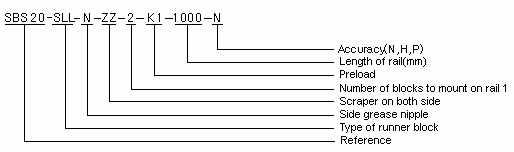

Model No	External dimensions				LM-block dimensions
	Height H	E	W₂	Width W	Length L	Mounting tab hole		L₁	K	T	Grease nipple
	Height H	E	W₂	Width W	Length L	B X J	M X ℓ	L₁	K	T	Mouniing hole	T₁	N
SBS 20 SLL	28	3.5	12	44	93.2	32x50	M5x7	66.8	24.5	7.5	M6x0.75	5	9.8
SBS 25 SLL	33	5	12.5	48	106.4	35x50	M6x8	79	28	8	M6x0.75	5.2	9.8
SBS 25 HLL	36	5	12.5	48	106.4	35x50	M6x8	79	31	11	M6x0.75	8.2	9.8
SBS 30 SLL	42	6	16	60	120.5	40x60	M8x10	92.9	35.5	12	M6x0.75	8.5	10.7
SBS 35 SLL	48	7.5	18	70	135	50x72	M8x12	105.9	40.5	15	M6x0.75	9.5	10.7

※ Download CAD Files

Model No	LM-rail dimensions						Load capacity					Weight
	Width W1	Height H1	Pitch F	Bolt hole dxDxh	G	Max Lengths Lomax	Dynamic C(kgf)	Stationary Co(kgf)	stationary moment(kgf.m)			Bearing (kgf)	Rail (kgf/m)
	Width W1	Height H1	Pitch F	Bolt hole dxDxh	G	Max Lengths Lomax	Dynamic C(kgf)	Stationary Co(kgf)	MRo	MPo	Mro	Bearing (kgf)	Rail (kgf/m)
SBS 20 SLL	20	17.5	60	6x9.5x8.5	20	4,000	1725	3730	29	32	32	0.45	2.20
SBS 25 SLL	23	21.8	60	7x11x9	20	4,000	2517	4905	44	50	49	0.73	3.10
SBS 25 HLL	23	21.8	60	7x11x9	20	4,000	2517	4905	44	50	49	0.73	3.10
SBS 30 SLL	28	25	80	9x14x12	20	4,000	3602	6929	75	81	80	1.28	4.45
SBS 35 SLL	34	29	80	9x14x12	20	4,000	4701	9225	126	133	131	2.12	6.40
