▶ SBS LM GUIDE SL (Heavy-load compact type)

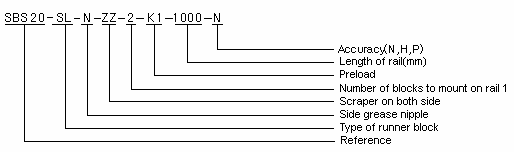

▶ SBS-SL (Block) Heavy-load compact type unit :mm

Model No.	External dimensions				LM-block dimensions
	Height H	E	W₂	Width W	Length L	Mounting tab hole		L₁	K	T	Grease nipple
	Height H	E	W₂	Width W	Length L	B X J	M X ℓ	L₁	K	T	Mouniing hole	T₁	N
SBS 15 SL	24	2.65	9.5	34	58.8	26x26	M4x5	38.8	21.35	6	Ø3.5	4	5
SBS 20 SL	28	3.5	12	44	77.2	32x32	M5x7	50.8	24.5	7.5	M6x0.75	5	9.8
SBS 25 SL	33	5	12.5	48	86.9	35x35	M6x8	59.5	28	8	M6x0.75	5.2	9.8
SBS 25 HL	36	5	12.5	48	86.9	35x35	M6x8	59.5	31	11	M6x0.75	8.2	9.8
SBS 30 SL	42	6.5	16	60	98	40x40	M8x10	70.4	35.5	12	M6x0.75	8.5	10.7
SBS 35 SL	48	7.5	18	70	109.5	50x50	M8x12	80.4	40.5	15	M6x0.75	9.5	10.7

※ Download CAD Files

Model No.	LM-rail dimensions						Load capacity					Weight
	Width W1	Height H1	Pitch F	Bolt hole dxDxh	G	Max Lengths Lomax	Dynamic C(kgf)	Stationary Co(kgf)	stationary moment(kgf.m)			Bearing (kgf)	Rail (kgf/m)
	Width W1	Height H1	Pitch F	Bolt hole dxDxh	G	Max Lengths Lomax	Dynamic C(kgf)	Stationary Co(kgf)	MRo	MPo	Mro	Bearing (kgf)	Rail (kgf/m)
SBS 15 SL	15	15	60	4.5x7.5x5.3	20	3,000	850	1370	7	5	5	0.2	1.45
SBS 20 SL	20	17.5	60	6x9.5x8.5	20	4,000	1450	2560	22	18	18	0.33	2.20
SBS 25 SL	23	21.8	60	7x11x9	20	4,000	2140	4000	36	32	31	0.56	3.10
SBS 25 HL	23	21.8	60	7x11x9	20	4,000	2140	4000	36	32	31	0.56	3.10
SBS 30 SL	28	25	80	9x14x12	20	4,000	2980	5490	60	50	49	0.98	4.45
SBS 35 SL	34	29	80	9x14x12	20	4,000	3960	7010	96	75	73	1.63	6.40
