▶ 로크너트 ( Fine U- Nuts)

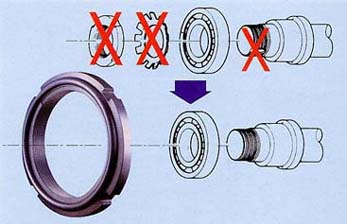

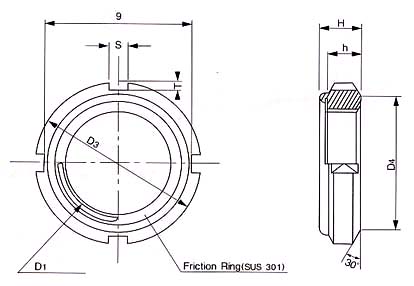

형번			dXPitch D1	기본치수												측면직각도 최대
SC Serues (S45C)	SS Serues (SS)	SUS Serues (SUS 304)		D3		D4		g		T	S		h	H
FU00SC	FU00SS	FU00US	M10X0.75	18	0 -0.02	13	±0.2	14.4	0 -0.2	1.8	3	±0.1	4	5.2	±0.1	0.05
FU01SC	FU01SS	FU01US	M12X1	22		17		48.4		1.8	3		4	5.4
FU02SC	FU02SS	FU02US	M15X1	25	0 -0.5	21	0 -0.5	21.4	0 -0.5	1.8	4	±0.2	5	6.5	±0.5
FU03SC	FU03SS	FU03US	M17X1	28		24		24.2		1.9	4		5	6.4
FU04SC	FU04SS	FU04US	M20X1	32		26		28.4		1.8	4		6	7.7
FU05SC	FU05SS	FU05US	M25X1.5	38		32		34		2	5		7	9.1
FU06SC	FU06SS	FU06US	M30X1.5	45		38		41		2	5		7	9.1	±0.8
FU07SC	FU07SS	FU07US	M35X1.5	52		44		48		2	5		8	10.2
FU08SC	FU08SS	FU08US	M40X1.5	58		50		53		2.5	6		9	11.2
FU09SC	FU09SS	FU09US	M45X1.5	65		56		60		2.5	6		10	12.5	±0.1
FU10SC	FU10SS	FU10US	M50X1.5	70		61		65		2.5	6		11	13.5
FU11SC	FU11SS	FU11US	M55X2	75		67		69		3	7		11	13.5		0.07
FU12SC	FU12SS	FU12US	M60X2	80		73		74		3	7		11	13.5
FU13SC	FU13SS	FU13US	M65X2	85		79		79		3	7		12	15	±1.5
FU14SC	FU14SS	FU14US	M70X2	92		85		85		3.5	8		12	15
FU15SC	FU15SS	FU15US	M75X2	98		90		91		3.5	8		13	15.8
FU16SC	FU16SS	FU16US	M80X2	105		95		98		3.5	8		15	18.6
FU17SC	FU17SS	FU17US	M85X2	110		102		103		3.5	8		16	19.2
FU18SC	FU18SS	FU18US	M90X2	120		108		112		4	10	±0.3	16	20.3
FU19SC	FU19SS	FU19US	M95X2	125		113		117		4	10		17	21.3
FU20SC	FU20SS	FU20US	M100X2	130		120		122		4	10		18	22.3
FU21SC			M105X2	140		126		130		5	12		18	22.3
FU22SC			M110X2	145		133		135		5	12		19	23.3
FU23SC			M115X2	150		137		140		5	12		19	24.4
FU24SC			M120X2	155		138		145		5	12		20	23.3
FU25SC			M125X2	160		148		150		5	12		21	25.4
FU26SC			M130X2	165		149		155		5	12		21	25.6		0.10
FU27SC			M135X2	175		160		163		6	14		22	26.6
FU28SC			M140X2	180		160		168		6	14		22	26.6	±2.0
FU29SC			M145X2	190		172		178		6	14		24	28.6
FU30SC			M150X2	195		171		183		6	14		24	28.3

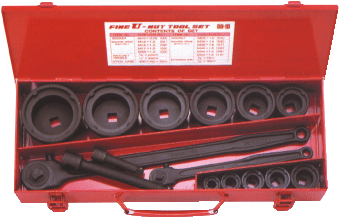

FINE U-NUT TOOL SET  00-10

Dimensions (mm)

품목 (FUN NO.) 품목 (FUN NO.) Soket Square Drive 9.5mm(3/8") M10 * 0.75 (00) Soket Square Drive 12.7mm(1/2") M25 * 1.5 (05) M12 * 1.0 (01) M30 * 1.5 (06) M15 * 1.0 (02) M35 * 1.5 (07) M17 * 1.0 (03) M40 * 1.5(08) M20 * 1.0 (04) M45 * 1.5 (09)   3/8 * 225 mm   M50 * 1.5 (10)   1/2 * 390 mm   3/8" * 75 mm   400 * 150 * 70 mm   1/2" * 150 mm
