기본번호

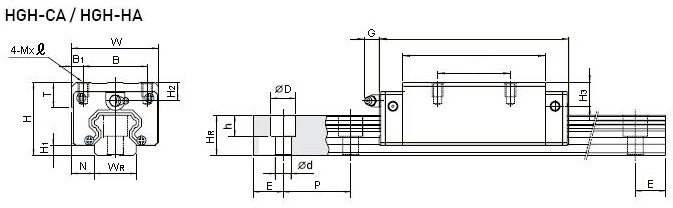

외형치수

블  럭  치  수 (mm)

H

H1

N

W

 B

B1

C

L1

L

G

M×l

T

H2

H3

HGH15CA

28

4.3

9.5

34

26

4

26

39.4

61.4

5.3

M4x5

6

8.5

9.5

HGH20CA

30

4.6

12

44

32

6

36

50.5

75.6

12

M5x6

8

6

7

HGH20HA

50

65.2

90.3

HGH25CA

40

5.5

12.5

48

35

6.5

35

58

83

12

M6x8

8

10

13

HGH25HA

50

78.6

103.6

HGH30CA

45

6

16

60

40

10

40

70

97.4

12

M8x10

8.5

9.5

13.8

HGH30HA

60

93

120.4

HGH35CA

55

7.5

18

70

50

10

50

80

112.4

12

M8x12

10.2

16

19.6

HGH35HA

72

105.8

138.2

HGH45CA

70

9.5

20.5

86

60

13

60

97

138

12.9

M10x17

16

18.5

30.5

HGH45HA

80

128.8

169.8

HGH55CA

802

13

23.5

100

75

12.5

75

117.7

165.7

12.9

M12x18

17.5

22

29

HGH55HA

95

155.8

203.8

HGH65CA

90

15

31.5

126

76

25

70

142.6

196.6

12.9

M16x20

25

15

15

HGH65HA

120

203.6

257.6

레일치수

레일체결
볼트
(mm)

기본 정격 하중

중량

기본번호

WR

HR

D

h

d

P

E

동정격
C(kN)

정정격
C0(kN)

정모먼트(kN.m)

베어링
(kgf)

레일
(kgf/m)

MR

MP

MY

15

15

7.5

5.3

4.5

60

20

11.38

25.31

0.17

0.15

0.15

0.18

1.45

HGH15CA

20

17.5

9.5

8.5

6

60

20

17.75

37.84

0.38

0.27

0.27

0.38

2.21

HGH20CA

21.18

48.84

0.48

0.47

0.47

0.39

HGH20HA

23

22

11

9

7

60

20

26.48

56.19

0.64

0.51

0.51

0.67

3.21

HGH25CA

32.75

6.00

0.87

0.88

0.88

0.69

HGH25HA

28

26

14

12

9

80

20

38.74

83.06

1.06

0.85

0.85

1.14

4.47

HGH30CA

47.27

110.13

1.40

1.47

1.47

1.16

HGH30HA

34

29

14

12

9

80

20

49.52

102.87

1.73

1.20

1.20

1.88

6.3

HGH35CA

60.21

136.31

2.29

2.08

2.08

1.92

HGH35HA

45

38

20

17

14

105

22.5

77.57

155.93

3.01

2.35

2.35

3.54

10.41

HGH45CA

94.54

207.12

4.00

4.07

4.07

3.61

HGH45HA

53

44

23

20

16

120

30

114.44

227.81

5.66

4.06

4.06

5.38

15.08

HGH55CA

139.35

301.26

7.49

7.01

7.01

5.49

HGH55HA

63

53

26

22

18

150

35

162.36

319.71

9.91

6.44

6.44

6.93

21.18

HGH65CA

208.36

457.15

14.15

11.12

11.12

9.82

HGH65HA
