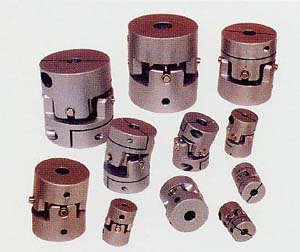

 ▶ Cross Joint Type Flexible Coupling


 The precision calibration coupling of the cross joint type
which isable to absorb with little strain eccintricity and amplitude instrumentally is acoupling of unique structure combining both Oldham and universal joints which curb the generation of a resisting force delicately and absorb intake tolerances, and SUNG IL manufactures it in a simple
design in such a way thatit carries high rigidity, lowinertia andhigh resonance frequency and in which the extent of stoppage and the responsiveness of a precision position deciding instrument are enhanced.







    Feature

  • Identical both in a regulardirection and a reverse direction, and a unifom revolutionis available.
  • Hasexcellent durability, chemical-resistance and oil-resistance.
  • The bearing built-in in the hub andthe pin in the center block absorb big eccentricities and amplitudes
    with little stain.
  • If the pin and bearings are asseembled in a high level, it reduces back-lash to the minimum.
  • mimimizes the generationof a resisting force with its high torsionalrigidity andlow inertia.
  • Delivers a control unit angle swiftlly in a high level.
  • varied sizes are available.



             용도

  • Robot, X-Y Table
  • semi-conduceors and related instruments, andlaser processord...
  • NC & MC machine tools and precision measuring instruments...
  • NC woodworking machinery, measuringinstruments, asphiric grinding machines...

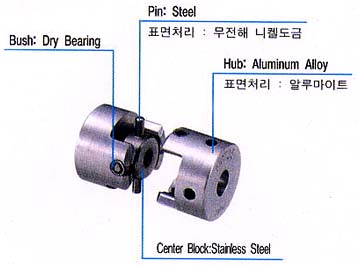

  • CONSTRUCTION & MATERIAL

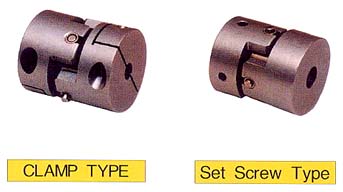

SCJ - □□ (Set Screw Type)



SCJA - □□C(Clamp Type)

SCJB - □□C(Clamp Type)



Product No.

Rated
Torque
(Nm)

Max
Torque
(Nm)

Max
RPM
m:n-1)

Moment
of Inertia
(kg m)

Static Torsional
Stiffness
(Nm/rad)

Errors of
Eccentricity
(mm)

Errors of
Angularity

Mass
(g)

SCJA-12C

0.15

0.3

6000

1X10-7

110

0.3

3°

4.5

SCJA-15C

0.25

0.5

6000

3.3X10-7

220

0.3

3°

9

SCJA-20C

0.5

1

6000

1.2X10-6

350

0.5

3°

19

SCJA-25C

1

2

6000

3.3X10-6

800

0.5

3°

34

SCJA-32C

2

4

5000

1.1X10-5

1000

0.5

3°

72

SCJA-40C

5

10

4000

3.2X10-5

1400

0.5

3°

140

SCJB-12C

0.15

0.3

6000

1X10-7

100

0.3

7°

4.5

SCJB-15C

0.25

0.5

6000

3.5X10-7

200

0.3

7°

10

SCJB-20C

0.5

1

5000

1.3X10-6

300

0.5

7°

20

SCJB-25C

1

2

5000

3.4X10-6

700

0.5

7°

35

SCJB-32C

2

4

4500

1.2X10-5

950

0.5

7°

75

SCJB-40C

5

10

3500

3.3X10-5

1200

0.5

7°

145

SCJ-12

0.15

0.3

6000

1X10-7

100

0.3

3°

4.5

SCJ-15

0.25

0.5

6000

3.3X10-7

200

0.3

3°

9

SCJ-20

0.5

1

6000

1.3X10-6

450

0.5

3°

20

SCJ-25

1

2

6000

3.4X10-6

800

0.5

3°

35

SCJ-32

2

4

5000

1.2X10-5

1000

0.5

3°

75

SCJ-40

5

10

4000

3.3X10-5

1300

0.5

3°

145

  ※ Download CAD Files

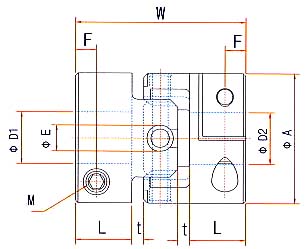

Product No.

A

L

W

t

E

F

M

Standard Inner Diameter(mm)  d1    d2

3

4

5

6

6.35

8

10

11

12

14

15

SCJA-12C

12.7

7.2

20.2

0.7

2

2.4

2

●

●

●

















SCJA-15C

15

8

22.4

0.8

2.5

3

2.6

●

●

●

●















SCJA-20C

20

8

23.6

0.8

4

3

2.6



●

●

●

●

●











SCJA-25C

25

10.5

30.6

1.3

5

3.6

3





●

●

●

●

●









SCJA-32C

32

13.5

39

1.6

8

4.5

4







●

●

●

●

●

●

●

●

SCJA-40C

40

16

45.6

1.9

10

6

5











●

●

●

●

●

●

SCJB-12C

12.7

7.2

22.1

1.5

2

2.4

2

●

●

●

















SCJB-15C

15

10.5

24.2

1.8

2.5

3

2.6

●

●

●

●

●













SCJB-20C

20

8

26.5

2.2

4

3

2.6



●

●

●

●

●











SCJB-25C

25

10.5

33.5

2.8

5

3.6

3





●

●

●

●

●









SCJB-32C

32

13.5

43

3.6

8

4.5

4







●

●

●

●

●

●

●

●

SCJB-40C

40

16

51

4.5

10

6

5











●

●

●

●

●

●

SCJ-12

12.7

7.2

20.2

0.7

2

3.4

2.5

●

●

●

















SCJ-15

15

8

22.4

0.8

2.5

3.8

3

●

●

●

●

●













SCJ-20

20

8

23.6

0.8

4

3.8

3



●

●

●

●

●











SCJ-25

25

10.5

30.5

1.3

5

5

4





●

●

●

●

●









SCJ-32

32

13.5

39

1.6

8

6.5

5







●

●

●

●

●

●

●

●

SCJ-40

40

16

45.6

1.9

10

8

5











●

●

●

●

●

●
