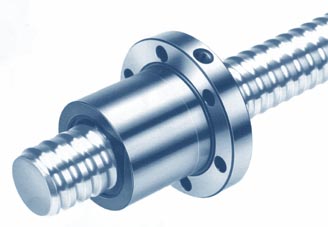

 ¢º STAR Ball Screw Single Nut with Flange FEM-E-S


     With standard seals

     With backlash, reduced backlash,
     preload 2% or 5% C

     For precision-rolled screws
     SN-R of tolerance grade T5, T7, T9
     and groundthread screws SN-F of tolerance
     grade P1,P3, P5, (T7)

d0 : nominal diameter    P : lead(R=right-hand, L=left-hend)   Dw : ball diameter  i = number of ball track turns

 Size

Part number

Load ratings

d0 x P x Dw- i

dyn.

stat.

C(N)

C0(N)

8 x 2.5  R x 1.588-3

1532-2-3003

2200

2800

12 x 5  R x 2.5-3

1532-4-6023

3800

5800

12 x 10  R x 2-2

1532-4-9013

2500

3600

16 x 5  R x 3-4

1512-0-1013

12300

16100

16 x 10  R x 3-3

1512-0-4013

9600

12300

16 x 16  R x 3-2

1512-0-6013

6300

7600

20 x 5  R x 3-4

1512-1-1013

14300

21500

20 x 20  R x 3.5-2

1512-1-7013

9100

12100

25 x 5  R x 3-4

1512-2-1013

15900

27200

25 x 10  R x 3-4

1512-2-4013

15700

27000

25 x 25  R x 3.5-2

1512-2-4013

10100

15100

32 x 5  R x 3.5-4

1512-3-1013

21600

40000

32 x 10  R x 3.969-5

1512-3-4013

31700

58300

32 x 20  R x 3.969-2

1512-3-7013

13500

21800

32 x 32  R x 3.969-2

1512-3-9013

13400

22000

40 x 5  R x 3.5-5

1512-4-1013

29100

64100

40 x 10  R x 6-4

1512-4-4013

50000

86400

40 x 20  R x 6-3

1512-4-7013

37900

62800

40 x 40  R x 6-2

1512-4-9013

25500

40300

50 x 5  R x 3.5-5

1512-5-1013

32000

81300

50 x 10  R x 6-6

1512-5-4013

79700

166500

50 x16 R x6-6

1512-5-6013

79400

166000

50 x 20  R x 6.5-3

1512-5-7013

47900

87900

50 x 40  R x 6.5-2

1512-5-9013

32100

55800

63 x 10  R x 6-6

1512-6-4013

88800

214300

63 x 20  R x 6.5-3

1512-6-7013

53200

112100

63 x 40  R x 6.5-2

1512-6-9013

36900

74300

80 x 10  R x 6.5-6

1512-7-4013

108400

291700

80 x 20  R x 9-6

1512-7-7013

170900

403900

80 x 20  R x 12.7-6

1512-7-7003

262700

534200

100 x 10  R x 6.5-6

1502-8-4002

119500

371900

100 x 20  R x 12.7-6

1502-8-7002

295100

686400

120 x 10  R x 6.5-6

1502-9-4002

130600

468700

120 x 20  R x 12.7-6

1502-9-7002

326500

870400

      ¡Ø Download CAD Files










d0 x P x Dw-i

Dimensions (mm)

Weight
m

(Kg)

d1

d2

D1
g6

D5

D6

Hole
pattern

 D7

L

L3

L4



L10

S

8 x 2.5  R x 1.588-3

7.5

6.3

16

30

23

BB4

3.4

16

8

8

0

8

3.9

0.05

12 x 5  R x 2.5-3

11.4

9.9

24

40

32

BB4

4.5

28

12

10

2

16

M6

0.12

12 x 10  R x 2-2

11.4

9.9

24

40

32

BB4

4.5

33

12

16

0

21

M6

0.14

16 x 5  R x 3-4

15.0

12.9

28

53

40

BB3

6.6

38

12

10

0

26

M6

0.24

16 x 10  R x 3-3

15.0

12.9

28

53

40

BB3

6.6

45

12

16

0

33

M6

0.25

16 x 16  R x 3-2

15.0

12.9

33

58

45

BB4

6.6

45

15

15

15

15

M6

0.39

20 x 5  R x 3-4

19.0

16.9

33

58

45

BB4

6.6

40

12

10

0

28

M6

0.28

20 x 20  R x 3.5-2

19.3

16.7

38

63

50

BB4

6.6

57

20

18.5

18.5

18.5

M6

0.60

25 x 5  R x 3-4

24.0

21.9

38

63

50

BB4

6.6

45

12

10

0

33

M6

0.35

25 x 10  R x 3-4

24.0

21.9

38

63

50

BB4

6.6

64

12

16

0

52

M6

0.44

25 x 25  R x 3.5-2

24.0

21.4

48

73

60

BB4

6.6

70

25

22.5

22.5

22.5

M6

1.09

32 x 5  R x 3.5-4

31.0

28.4

48

73

60

BB4

6.6

48

13

10

0

35

M6

0.54

32 x 10  R x 3.969-5

31.0

27.9

48

73

60

BB4

6.6

77

13

16

0

64

M6

0.72

32 x 20  R x 3.969-2

31.0

27.9

56

80

68

BB4

6.6

64

15

25

0

49

M6

1.02

32 x 32  R x 3.969-2

31.0

27.9

56

80

68

BB4

6.6

88

20

34

34

34

M6

1.40

40 x 5  R x 3.5-5

39.0

36.4

56

80

68

BB4

6.6

54

15

10

0

39

M8x1

0.71

40 x 10  R x 6-4

38.0

33.8

63

95

78

BB4

9

70

15

16

0

55

M8x1

1.29

40 x 20  R x 6-3

38.0

33.8

63

95

78

BB4

9

88

15

25

0

73

M8x1

1.54

40 x 40  R x 6-2

38.0

33.8

72

110

90

BB4

11

102

40

31

31

31

M8x1

3.59

50 x 5  R x 3.5-5

49.0

46.4

68

98

82

BB4

9

54

15

10

0

39

M8x1

1.02

50 x 10  R x 6-6

48.0

43.8

72

110

90

BB4

11

90

18

16

0

72

M8x1

2.02

50 x 16  R x 6-6

48.0

43.8

72

110

90

BB4

11

128

18

25

0

110

M8x1

2.58

50 x 20  R x 6.5-3

48.0

43.4

85

125

105

BB4

11

92

22

25

0

70

M8x1

3.40

50 x 40  R x 6.5-2

48.0

43.4

85

125

105

BB4

11

109

22

45

0

87

M8x1

3.87

63 x 10  R x 6-6

61.0

56.8

85

125

105

BB4

11

90

22

16

0

68

M8x1

2.62

63 x 20  R x 6.5-3

61.0

56.4

95

140

118

BB4

14

92

22

25

0

70

M8x1

3.71

63 x 40  R x 6.5-2

61.0

56.4

95

140

118

BB4

14

109

22

45

0

87

M8x1

4.21

80 x 10  R x 6.5-6

78.0

73.3

105

150

125

BB4

14

95

22

16

0

73

M8x1

3.78

80 x 20  R x 9-6

77.0

70.8

125

180

152

BB5

18

160

25

25

0

135

M8x1

10.80

80 x 20  R x 12.7-6

76.0

67.0

125

180

152

BB5

18

170

25

25

0

145

M8x1

11.00

100 x 10  R x 6.5-6

98.0

93.4

125

180

152

BB5

18

95

25

16

0

70

M8x1

5.46

100 x 20  R x 12.7-6

96.0

87.1

145

200

172

BB5

18

170

30

25

0

140

M8x1

14.50

120 x 10  R x 6.5-6

123.0

118.0

150

210

180

BB5

18

95

30

16

0

65

M8x1

7.49

125 x 20  R x 12.7-6

121.0

112.0

170

230

200

BB6

18

170

40

25

0

130

M8x1

19.00
