Model
|
KHG
|
KHS
|
|
조정방식
|
자기보정(Self adjusting)
|
자기보정(Self adjusting)
|
|
사용유체
|
Oil, N2
Gas
|
Oil
|
|
사용속도
|
0.2~4.5m/sec
|
0.2~3m/sec
|
|
사용온도
|
-20~80℃
|
-20~80℃
|
|
Return방식
|
Nitrogen gas
|
Coil Spring
|
|
Piston rod
|
H-Cr도금 (30~40㎛)
|
H-Cr도금 (30~40㎛)
|
|
Body, Bumper hea
|
Epoxy paint coatings
|
Epoxy paint coatings
|
|
Application
|
Over head crane, Transfer car, Stacker crane,
Gantry crane, Transport equipment
|
|
| |
|
|
|
|
|
|
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

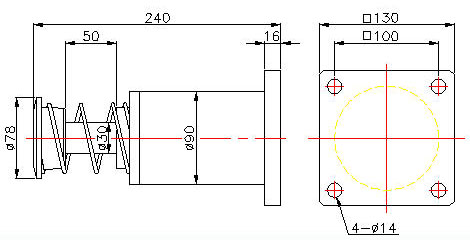

 KHS90-50
|
50 |
4 |
88 |
|
 |
| |
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

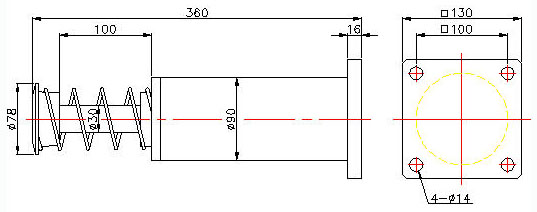

KHS90-100
|
100 |
7 |
77 |
|
| |
 |
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

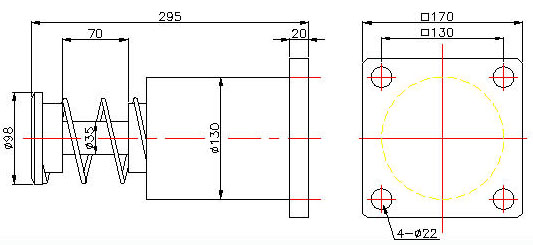

KHS130-70
|
70 |
10 |
157 |
|
| |
 |
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

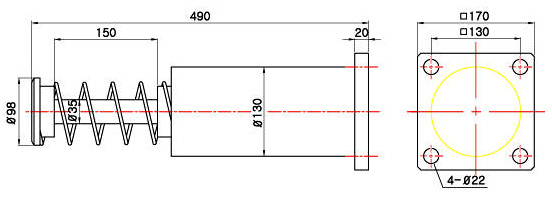

KHS130-150
|
150 |
15 |
110 |
|
| |
 |
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

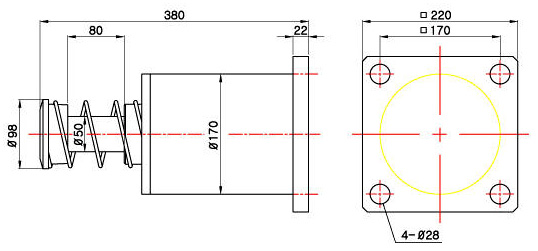

KHS170-80
|
80 |
24 |
330 |
|
| |
 |
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

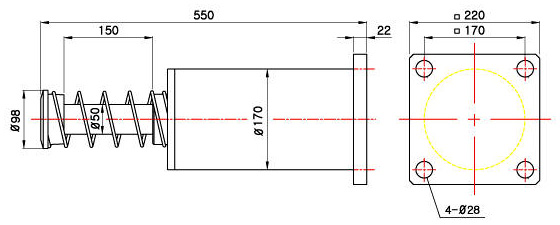

KHS170-150
|
150 |
30 |
220 |
|
| |
| |
 |
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

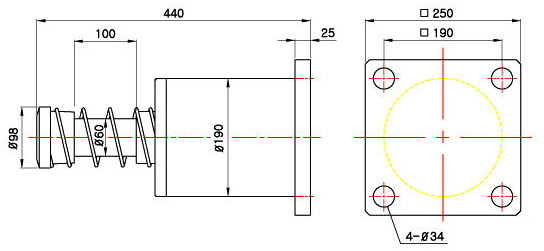

KHS190-100
|
100 |
40 |
440 |
|
| |
 |
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

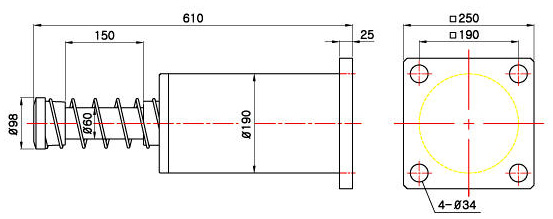

KHS190-150
|
150 |
70 |
366 |
|
| |
 |
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

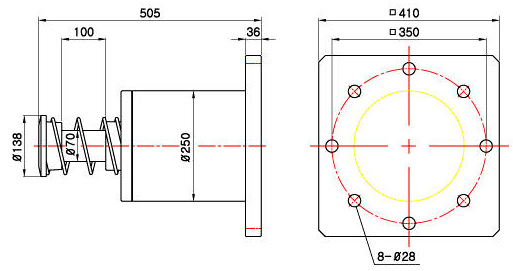

KHS250-100
|
100 |
60 |
660 |
|
| |
 |
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

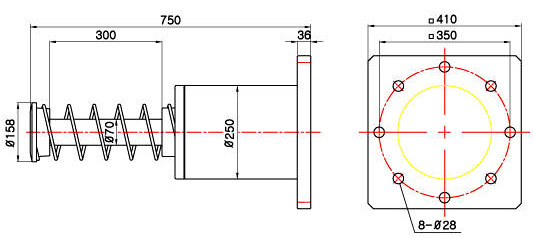

KHS250-300
|
300 |
100 |
366 |
|
| |
 |
| |
|
MODEL
|
Stroke (mm)
S
|
Max
energy buffer/Stroke
(kJ)EK
|
Max
buffer force
(kN)FM
|
|

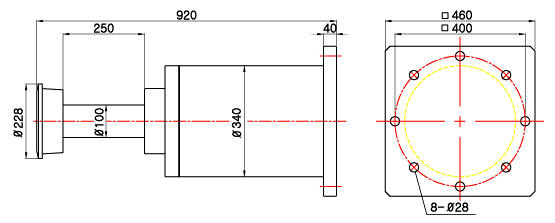

KHS340-250
|
250 |
200 |
880 |
|
| |
|
|
| |
