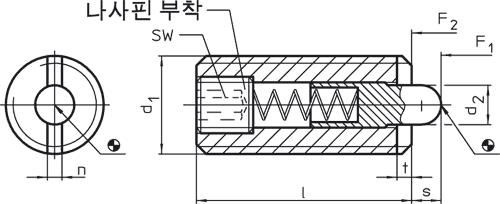

EH 2206. 스프링 플런져 (육각렌지형)
|
| |
|
|
|
| |
|
|
재질:
|
몸체:-스틸, 흑색처리
-스텐레스 스틸 1.4305
|
핀:-스틸, 경화처리
-스텐레스 스틸 1.4305
-플라스틱 흰색(POM)
|
스프링: -스텐레스 스틸
|
|
특징:강화된 스프링력 = 나사핀, 밝은색
|
|
참조:로케이팅이나 압력을 가하거나 들어 올리는 데 사용.
스프링 플런져들은 일자홈이나 육각렌지로 고정
|
|
| |
|
|
|
| |
|
| |
|
| |
 |
| |
|
| |
|
스틸, 일반 하중 스프링
|
|
부품번호
|
d1
|
d2
|
l
|
n
|
s
|
t
|
WS
|
스프링력
F1
N~
|
스프링력
F2
N~
|
최대
&도;C
|
g
|
|
2206.003
|
M3
|
1,0
|
12
|
0,4
|
1,0
|
0,5
|
0,7
|
2,0
|
4,0
|
+250
|
0,4
|
|
2206.004
|
M4
|
1,5
|
15
|
0,6
|
1,5
|
0,6
|
1,3
|
4,5
|
16,0
|
+250
|
0,8
|
|
2206.005
|
M5
|
2,4
|
18
|
1,2
|
2,3
|
0,8
|
1,5
|
6,0
|
19,0
|
+250
|
1,6
|
|
2206.006
|
M6
|
2,7
|
20
|
1,3
|
2,5
|
0,9
|
2,0
|
6,0
|
19,0
|
+250
|
2,5
|
|
2206.008
|
M8
|
3,5
|
22
|
1,5
|
3,0
|
1,4
|
2,5
|
10,0
|
39,0
|
+250
|
6,0
|
|
2206.010
|
M10
|
4,0
|
22
|
1,5
|
3,0
|
1,4
|
3,0
|
10,0
|
39,0
|
+250
|
9,0
|
|
2206.012
|
M12
|
6,0
|
28
|
2,7
|
4,0
|
2,0
|
4,0
|
12,0
|
53,0
|
+250
|
16,0
|
|
2206.016
|
M16
|
7,5
|
32
|
3,2
|
5,0
|
2,5
|
5,0
|
45,0
|
100,0
|
+250
|
35,0
|
|
2206.020
|
M20
|
10,0
|
40
|
3,7
|
7,0
|
3,0
|
6,0
|
52,0
|
125,0
|
+250
|
65,0
|
|
2206.024
|
M24
|
12,0
|
52
|
3,7
|
10,0
|
3,0
|
8,0
|
70,0
|
170,0
|
+250
|
120,0
|
|
| |
|
| |
|
스틸, 초 중하중 스프링
|
|
부품번호
|
d1
|
d2
|
l
|
n
|
s
|
t
|
WS
|
스프링력
F1
N~
|
스프링력
F2
N~
|
최대
&도;C
|
g
|
|
2206.105
|
M5
|
2,4
|
18
|
1,2
|
2,3
|
0,8
|
1,5
|
11,0
|
40,0
|
+250
|
1,3
|
|
2206.106
|
M6
|
2,7
|
20
|
1,3
|
2,5
|
0,9
|
2,0
|
15,0
|
43,0
|
+250
|
2,5
|
|
2206.108
|
M8
|
3,5
|
22
|
1,5
|
3,0
|
1,4
|
2,5
|
20,0
|
75,0
|
+250
|
6,0
|
|
2206.110
|
M10
|
4,0
|
22
|
1,5
|
3,0
|
1,4
|
3,0
|
20,0
|
75,0
|
+250
|
9,0
|
|
2206.112
|
M12
|
6,0
|
28
|
2,7
|
4,0
|
2,0
|
4,0
|
45,0
|
120,0
|
+250
|
16,0
|
|
2206.116
|
M16
|
7,5
|
32
|
3,2
|
5,0
|
2,5
|
5,0
|
64,0
|
160,0
|
+250
|
35,0
|
|
2206.120
|
M20
|
10,0
|
40
|
3,7
|
7,0
|
3,0
|
6,0
|
75,0
|
195,0
|
+250
|
65,0
|
|
2206.124
|
M24
|
12,0
|
52
|
3,7
|
10,0
|
3,0
|
8,0
|
75,0
|
245,0
|
+250
|
120,0
|
|
| |
|
| |
 |
| |
|
| |
|
스틸, 플라스틱 핀, 일반 하중 스프링
|
|
부품번호
|
d1
|
d2
|
l
|
n
|
s
|
t
|
WS
|
스프링력
F1
N~
|
스프링력
F2
N~
|
최대
&도;C
|
g
|
|
2206.204
|
M4
|
1,5
|
15
|
0,6
|
1,5
|
0,6
|
1,3
|
4,5
|
16,0
|
-30/+50
|
0,8
|
|
2206.205
|
M5
|
2,4
|
18
|
1,2
|
2,3
|
0,8
|
1,5
|
6,0
|
19,0
|
-30/+50
|
1,3
|
|
2206.206
|
M6
|
2,7
|
20
|
1,3
|
2,5
|
0,9
|
2,0
|
6,0
|
19,0
|
-30/+50
|
2,5
|
|
2206.208
|
M8
|
3,5
|
22
|
1,5
|
3,0
|
1,4
|
2,5
|
10,0
|
39,0
|
-30/+50
|
5
|
|
2206.210
|
M10
|
4,0
|
22
|
1,5
|
3,0
|
1,4
|
3,0
|
10,0
|
39,0
|
-30/+50
|
9,0
|
|
2206.212
|
M12
|
6,0
|
28
|
2,7
|
4,0
|
2,0
|
4,0
|
12,0
|
53,0
|
-30/+50
|
16,0
|
|
2206.216
|
M16
|
7,5
|
32
|
3,2
|
5,0
|
2,5
|
5,0
|
45,0
|
100,0
|
-30/+50
|
35,0
|
|
| |
|
| |
 |
| |
|
| |
|
스텐레스 스틸, 일반 하중 스프링
|
| 부품번호 |
d1 |
d2 |
l |
n |
s |
t |
WS |
스프링력
F1
N~ |
스프링력
F2
N~ |
최대
&도;C |
g
|
| 2206.404 |
M4
|
1,5
|
15
|
0,6
|
1,5
|
0,6
|
1,3
|
4,5
|
16,0
|
+250
|
0,8
|
| 2206.405 |
M5
|
2,4
|
18
|
1,2
|
2,3
|
0,8
|
1,5
|
6,0
|
19,0
|
+250
|
1,3
|
| 2206.406 |
M6
|
2,7
|
20
|
1,3
|
2,5
|
0,9
|
2,0
|
6,0
|
19,0
|
+250
|
2,5
|
| 2206.408 |
M8
|
3,5
|
22
|
1,5
|
3,0
|
1,4
|
2,5
|
10,0
|
39,0
|
+250
|
6,0
|
| 2206.410 |
M10
|
4,0
|
22
|
1,5
|
3,0
|
1,4
|
3,0
|
10,0
|
39,0
|
+250
|
9,0
|
| 2206.412 |
M12
|
6,0
|
28
|
2,7
|
4,0
|
2,0
|
4,0
|
12,0
|
53,0
|
+250
|
16,0
|
| 2206.416 |
M16
|
7,5
|
32
|
3,2
|
5,0
|
2,5
|
5,0
|
45,0
|
100,0
|
+250
|
35,0
|
| 2206.420 |
M20
|
10,0
|
40
|
3,7
|
7,0
|
3,0
|
6,0
|
52,0
|
125,0
|
+250
|
65,0
|
|
| |
|
| |
 |
| |
|
| |
|
스텐레스 스틸, 플라스틱 핀, 일반 하중 스프링
|
| 부품번호 |
d1 |
d2 |
l |
n |
s |
t |
WS |
스프링력
F1
N~ |
스프링력
F2
N~ |
최대
&도;C |
g
|
|
2206.604
|
M4
|
1,5
|
15
|
0,6
|
1,5
|
0,6
|
1,3
|
4,5
|
16,0
|
-30/+50
|
0,8
|
|
2206.605
|
M5
|
2,4
|
18
|
1,2
|
2,3
|
0,8
|
1,5
|
6,0
|
19,0
|
-30/+50
|
1,3
|
|
2206.606
|
M6
|
2,7
|
20
|
1,3
|
2,5
|
0,9
|
2,0
|
6,0
|
19,0
|
-30/+50
|
2,5
|
|
2206.608
|
M8
|
3,5
|
22
|
1,5
|
3,0
|
1,4
|
2,5
|
10,0
|
39,0
|
-30/+50
|
6,0
|
|
2206.610
|
M10
|
4,0
|
22
|
1,5
|
3,0
|
1,4
|
3,0
|
10,0
|
39,0
|
-30/+50
|
9,0
|
|
2206.612
|
M12
|
6,0
|
28
|
2,7
|
4,0
|
2,0
|
4,0
|
12,0
|
53,0
|
-30/+50
|
16,0
|
|
2206.616
|
M16
|
7,5
|
32
|
3,2
|
5,0
|
2,5
|
5,0
|
45,0
|
100,0
|
-30/+50
|
35,0
|
|
| |
|
| |
|
| |
 |
|
