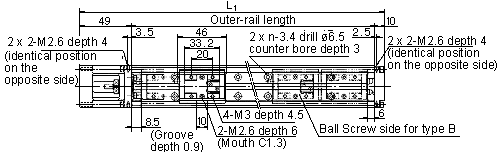

▶ Products : LM Guide >THK LM Guide > Actuator type KR >2001 (without a cover)



    KR2001A (with one long block)
    KR2001B (with two long blocks)





  Nipple direction



Outer-rail
length		 Overall length
L1

KR2001A

KR2001B

G

n
Possible stroke range Possible stroke range

100

159

41.5

－

20

2

150

209

91.5

45.5

15

3

200

259

141.5

95.5

40

3

                ※ Download CAD Files

               ※The possible stroke range of model KR2001B is the value for closely linked double blocks.
