▶LM GUIDE- JR   Types and Features


JR-A Type

JR-B Type

The flange of the LM block is provided with tapped holes to enable simple assembly, making it suitable for use in build-up systems. The LM blocks can be attached to a table from below. For use with a table in which a through hole cannot be drilled.

JR-R Type


The narrowed flange of the LM block is provided with tapped holes, making it convenient for use in build-up systems.

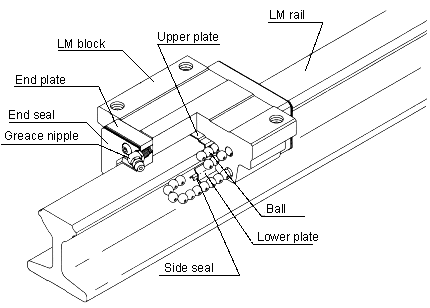

Construction of Model JR
